调心滚子轴承

文字： [大] [中] [小] 手机页面二维码

发布时间：2026-03-06

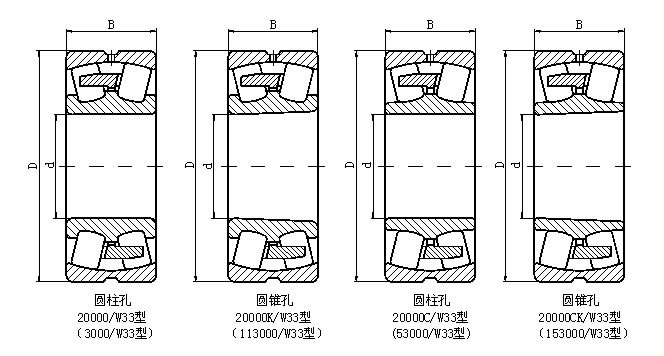

调心滚子轴承为双列球面滚子轴承，内圈有两列滚道，外圈为球面滚道，外圈滚动面中心与轴承中心一致。自动调心性能好，可补偿轴与外壳孔之间的安装误差或轴挠曲使内外圈产生的倾斜即同轴度误差。该类轴承径向负荷能力较大，同时也可承受任一方向的轴向负荷，单不能承受纯轴向负荷，特别适用于重载荷或振动冲击载荷下的工作。

主要技术参数：

轴承型号		外形尺寸（㎜）				额定载荷（KN）		极限转速（rpm）		质量（㎏）
Bearing NO.		Boundary Dimensions				Basic Load Rating		Limiting Speed		质量（㎏）
现型号	原型号	d	D	B	rsmin	动	静	脂	油	Weight
Current	Original	d	D	B	rsmin	Dynamic	Static	Grease	Oil	Weight
23030	3003130	150	225	56	2.1	432	744	1700	2200	8.35
23030/W33	3003130Y		225	56	2.1	432	744	1700	2200	8.27
23030K	3113130		225	56	2.1	432	744	1700	2200	8.11
23030C/W33	3053130		225	56	2.1	432	744	1700	2200	8.12
24030CA/W33	4053130		225	75	2.1	557	884	1500	2000	10.5
24030CAK/W33	4153130		225	75	2.1	557	884	1500	2000	10.5
23130CA/W33	3053730		250	80	2.1	698	1110	1400	1800	15.7
23130CAK/W33	3153730		250	80	2.1	698	1110	1400	1800	15.2
24130C	4053730K		250	100	2.1	886	1480	800	1000	19.2
24130C/W33	4053730		250	100	2.1	886	1480	800	1000	19.1
24130CK/W33	4153730		250	100	2.1	886	1480	800	1000	19
22230	3530		270	73	3	695	966	1600	2000	19.1
22230K	113530		270	73	3	695	966	1600	2000	18.7
22230/W33	3530Y		270	73	3	695	966	1600	2000	18.9
22230CA/W33	53530		270	73	3	755	1100	1600	2000	18.5
22230CAK/W33	153530		270	73	3	755	1100	1600	2000	19
23230CA/W3	3053230		270	96	3	936	1490	1100	1500	23.2
23230CAK/W3	3153230		270	96	3	936	1490	1100	1500	23.2
22330	3630		320	108	4	1230	1600	1000	1400	43.7
22330K	113630		320	108	4	1230	1600	1000	1400	42.8
22330/W33	3630Y		320	108	4	1230	1600	1000	1400	43.4
22330K/W33	113630Y		320	108	4	1230	1600	1000	1400	42.5
22330CA/W33	53630		320	108	4	1230	1700	1000	1400	42.8
22330CAK/W33	153630		320	108	4	1230	1700	1000	1400	42.3
23032CA	3003132	160	240	60	2.1	518	890	1700	2200	9.5
23032CA/W33	3053132		240	60	2.1	518	890	1700	2200	9.4
23032CAK	3113132		240	60	2.1	518	890	1700	2200	9.2
24032CA/W33	4053132		240	80	2.1	638	1020	1400	1900	13
24032CAK/W33	4153132		240	80	2.1	638	1020	1400	1900	13
23132CA	3003732		270	86	2.1	851	1395	1300	1700	20.8
23132CA/W33	3053732		270	86	2.1	851	1395	1300	1700	20.7
23132CAK	3113732		270	86	2.1	851	1395	1300	1700	20.3
23132CAK/W33	3153732		270	86	2.1	851	1395	1300	1700	19.8
24132C/W33	4053732		270	109	2.1	1040	1760	700	900	22
24132CK/W33	4153732		270	109	2.1	1040	1760	700	900	22
22232	3532		290	80	3	833	1120	1500	1900	23.9
22232K	113532		290	80	3	833	1120	1500	1900	23.4
22232K/W33	113532Y		290	80	3	833	1120	1500	1900	23.2
22232CA/W33	53532		290	80	3	865	1280	1500	1900	23.6
22232CAK/W33	153532		290	80	3	865	1280	1500	1900	23.1
23232CA/W33	3053232		290	104	3	1037	1411	1200	1700	31
23232CAK/W33	3153232		290	104	3	1037	1411	1200	1700	31
22332	3632		340	114	4	1280	1770	950	1300	52.2
22332K	113632		340	114	4	1280	1770	950	1300	51.1
22332/W33	3632Y		340	114	4	1280	1770	950	1300	51.8
22332CA/W33	53632		340	114	4	1330	1840	950	1300	50.8
22332CAK/W33	153632		340	114	4	1330	1840	950	1300	50
23034CA	3003134	170	260	67	2.1	620	1070	1600	2000	13.2
23034CA/W33	3053134		260	67	2.1	620	1070	1600	2000	13.1
23034CAK	3113134		260	67	2.1	620	1070	1600	2000	13
24034CA/W33	4053134		260	90	2.1	790	1240	1400	1900	17.5
24034CAK/W33	4153134		260	90	2.1	790	1240	1400	1900	17.5
23134	3003734		280	88	2.1	874	1487	1200	1600	22
23134/W33	3003734Y		280	88	2.1	874	1487	1200	1600	21.9
23134CA/W33	3053734		280	88	2.1	907	1520	1200	1600	21.9
23134K	3113734		280	88	2.1	874	1487	1200	1600	21.3
23134K/W33	3113734Y		280	88	2.1	874	1487	1200	1600	21.2
23134CAK/W33	3153734		280	88	2.1	907	1520	1200	1600	21.5
24134C/W33	4053734		280	109	2.1	1080	1880	670	850	28
24134C/HCW33	4053734SK		280	109	2.1	1080	1880	670	850	27.8
24134CA	4053734K		280	109	2.1	1080	1880	670	850	26.5
24134CA/W33	4053734H		280	109	2.1	1080	1880	670	850	26.3
22234	3534		310	86	4	931	1350	1300	1700	28.7
22234K	113534		310	86	4	931	1350	1300	1700	28.1
22234K/W33	113534Y		310	86	4	931	1350	1300	1700	27.9
22234/W33	3534Y		310	86	4	931	1350	1300	1700	28.5
22234CA/W33	53534		310	86	4	974	1450	1300	1700	28.7
22234CAK/W33	153534		310	86	4	974	1450	1300	1700	28.4
23234CA/W33	3053734		310	110	4	1190	1640	1200	1600	37.5
23234CAK/W33	3153734		310	110	4	1190	1640	1200	1600	37.5
22334	3634		360	120	4	1490	2130	950	1300	60.7
22334K	113634		360	120	4	1490	2130	950	1300	59.3
22334/W33	3634Y		360	120	4	1490	2130	950	1300	60.4
22334CA/W33	53634		360	120	4	1490	2130	950	1300	59.8
22334CAK/W33	153634		360	120	4	1490	2130	950	1300	58.3
23936CA/W33	3053936	180	250	52	2	366	706	1600	2200	7.9
23036CA	3003136		280	74	2.1	794	1390	1400	1800	17.5
23036CA/W33	3003136Y		280	74	2.1	794	1390	1400	1800	17.4
23036CAK	3113136		280	74	2.1	794	1390	1400	1800	17
24036CA/W33	4053136		280	100	2.1	994	1850	950	1300	22.8
23136	3003736		300	96	3	950	1690	1100	1500	28.6
23136K	3113736		300	96	3	950	1690	1100	1500	27.8
23136/W33YA2	3003736KY		300	96	3	950	1690	1100	1500	28
23136/W33	3003736Y		300	96	3	950	1690	1100	1500	28.3
23136CA/W33	3053736Y		300	96	3	1060	1800	1100	1500	28
23136CAK/W33	3153736Y		300	96	3	1060	1800	1100	1500	27.6
24136C/W33	4053736		300	118	3	1240	2180	630	800	34.7
24136C/HCW33	4053736SK		300	118	3	1240	2180	630	800	34.6
24136CK/W33	4153736		300	118	3	1240	2180	630	800	34.6
22236	3536		320	86	4	994	1490	1300	1700	30.5
22236K	113536		320	86	4	994	1490	1300	1700	29.8
22236/W33	3536Y		320	86	4	994	1490	1300	1700	30.2
22236CA/W33	53536		320	86	4	994	1490	1300	1700	30.4
23236CA/W33	3053236		320	112	4	1270	1800	1100	1500	39.5
23236CAK/W33	3153236		320	112	4	1270	1800	1100	1500	39.5
22336	3636		380	126	4	1610	2310	900	1200	72.6
22336K	113636		380	126	4	1610	2310	900	1200	71.1
22336/W33	3636Y		380	126	4	1610	2310	900	1200	72
22336CA/W33	53636		380	126	4	1660	2370	900	1200	69.7
22336CAK/W33	153636		380	126	4	1660	2370	900	1200	69
23938CA/W33	3053938	190	260	52	2	352	680	1500	2000	8.3
23038	3003138	190	290	75	2.1	775	1370	1300	1700	18.2
23038/W33	3003138Y		290	75	2.1	775	1370	1300	1700	18
23038K	3113138		290	75	2.1	775	1370	1300	1700	17.7
23038CA/W33	3053138		290	75	2.1	762	1350	1300	1700	18
24038CA/W33	4053138		290	100	2.1	952	1530	1200	1600	24.5
24038CAK/W33	4153138		290	100	2.1	952	1530	1200	1600	24.4
23138CA/W33	3053738		320	104	3	1220	2060	1000	1400	34.4
23138CAK/W33	3153738		320	104	3	1220	2060	1000	1400	34.3
24138CA	4053738		320	128	3	1240	2160	600	750	43
22238	3538		340	92	4	1080	1630	1200	1600	37.1
22238K	113538		340	92	4	1080	1630	1200	1600	36.3
22238/HC	3538S		340	92	4	1080	1630	1200	1600	37.1
22238CA/W33	53538		340	92	4	1080	1630	1200	1600	36.3
22238CAK/W33	153538		340	92	4	1080	1630	1200	1600	35.2
23238CA/W33	3053238		340	120	4	1410	2040	1000	1400	48
23238CAK/W33	3153238		340	120	4	1410	2040	1000	1400	48
22338	3638		400	132	5	1773	2592	850	1100	84.2
22338K	113638		400	132	5	1773	2592	850	1100	82.5
22338/W33	3638Y		400	132	5	1773	2592	850	1100	83.6
22338CA/W33	53638		400	132	5	1773	2592	850	1100	78.8
22338CAK/W33	153638		400	132	5	1773	2592	850	1100	78.6
23940CA/W33	3053940	200	280	60	2.1	464	884	1400	1900	11.5
23040	3003140		310	82	2.1	920	1630	1200	1600	23.4
23040K	3113140		310	82	2.1	920	1630	1200	1600	22.7
23040/W33	3003140Y		310	82	2.1	920	1630	1200	1600	23.1
24040CA/W33	4053140Y		310	109	2.1	1140	2190	1000	1400	31.2
23140	3003740		340	112	3	1240	2210	950	1300	42.2
23140/W33	3003740Y		340	112	3	1240	2210	950	1300	41.9
23140K	3113740		340	112	3	1240	2210	950	1300	41
23140K/W33	3113740Y		340	112	3	1240	2210	950	1300	40.7
23140CA/W33	3053740		340	112	3	1412	2406	950	1300	42.8
23140CA/HCW33	3053740SK		340	112	3	1412	2406	950	1300	42.6
23140CAK/W33	3153740		340	112	3	1412	2406	950	1300	42.6
24140C/W33	4053740		340	140	3	1550	2620	560	700	50.5
24140CK/W33	4153740		340	140	3	1550	2620	560	700	50
22240	3540		360	98	4	1270	1930	1100	1500	44.4
22240K	113540		360	98	4	1270	1930	1100	1500	43.6
22240/W33	3540Y		360	98	4	1270	1930	1100	1500	44.2
22240CA/W33	53540		360	98	4	1270	1930	1100	1500	44.6
22240CAK/W33	153540		360	98	4	1270	1930	1100	1500	44.4
23240CA/W33	3053240		360	128	4	1580	2290	900	1300	58
22340	3640		420	138	5	1930	2730	850	1100	94.4
22340K	113640		420	138	5	1930	2730	850	1100	92.4
22340K/W33	113640Y		420	138	5	1930	2730	850	1100	91.8
22340/W33	3640Y		420	138	5	1930	2730	850	1100	93.8
22340CA/W33	53640		420	138	5	1930	2730	850	1100	94
22340CAK/W33	153640		420	138	5	1930	2730	850	1100	93.8
23944CA/W33	3053944	220	300	60	2.1	464	918	1200	1700	12.5
23044CAX1/W33	53744		340	90	3	962	1920	1300	1700	24.1
23044	3003144		340	90	3	962	1920	1300	1700	30.6
23044K	3113144		340	90	3	962	1920	1300	1700	29.7
23044/W33	3003144Y		340	90	3	962	1920	1300	1700	30.3
23044CA/W33	3053144		340	90	3	962	1920	1300	1700	31
24044CA/W33	4053144		340	118	3	1326	2210	900	1200	40
23144	3003744		370	120	4	1540	2710	900	1200	53.8
23144/W33	3003744Y		370	120	4	1540	2710	900	1200	53.3
23144CA/HCW33	3053744S		370	120	4	1540	2710	900	1200	53.3
23144CAK	3153744		370	120	4	1540	2710	900	1200	52.3
23144CAK	3153744Y		370	120	4	1540	2710	900	1200	52.2
24144CA/W33	4053744		370	150	4	1800	2850	800	1100	67
22244	3544		400	108	4	1540	2350	950	1300	63
22244K	113544		400	108	4	1540	2350	950	1300	61.7
22244/W33	3544Y		400	108	4	1540	2350	950	1300	62.6
22244K/W33	113544Y		400	108	4	1540	2350	950	1300	60.5
22244CA/W33	53544		400	108	4	1540	2350	950	1300	59
22244CAK/W33	153544		400	108	4	1540	2350	950	1300	58.7
23244CA/W33	3053244		400	144	4	2010	3380	750	950	78.7
23244CAK/W33	3153244		400	144	4	2010	3380	750	950	76.3
22344	3644		460	145	5	2410	3560	750	950	119
22344K	113644		460	145	5	2410	3560	750	950	116
22344/W33	3644Y		460	145	5	2410	3560	750	950	118
22344K/W33	113644Y		460	145	5	2410	3560	750	950	116
23948/W33	3003948	240	320	60	2.1	564	1160	1300	1700	13.9
23948CA/W33	3053948		320	60	2.1	564	1160	1300	1700	14.8
23948CAK/W33	3153948		320	60	2.1	564	1160	1300	1700	14.6
23048	3003148		360	92	3	1170	2200	1000	1400	33.6
23048Q4/S0	3003148QT		360	92	3	1170	2200	1000	1400	33.4
23048CA/W33	3053148		360	92	3	1170	2200	1000	1400	33.4
23048K	3113148		360	92	3	1170	2200	1000	1400	32.6
23048CAK/W33	3153148		360	92	3	1170	2200	1000	1400	32
24048CA/W33	4053148		360	118	3	1360	2290	900	1200	43
23148	3003748		400	128	4	1740	3130	850	1100	66
23148/W33	3003748Y		400	128	4	1740	3130	850	1100	65.4
23148/C9W33	3003748UY		400	128	4	1740	3130	850	1100	65.4
23148K	3113748		400	128	4	1740	3130	850	1100	64
23148K/W33	3113748Y		400	128	4	1740	3130	850	1100	63.4
23148CA/W33	3053748		400	128	4	1740	3130	850	1100	65.7
23148CAK/W33	3153748		400	128	4	1740	3130	850	1100	63.7
24148C/W33	4053748		400	160	4	2100	3900	480	600	80.5
24148CK/W33	4153748		400	160	4	2100	3900	480	600	79.2
22248C/W33	53548		440	120	4	1940	3030	900	1200	82.4
22248C/C9W33	53548U		440	120	4	1940	3030	900	1200	82.4
22248CA/C9W33	53548HU		440	120	4	1940	3030	900	1200	81.4
23248CA/W33	3053248		440	160	4	2460	4220	670	850	110
23248CAK/W33	3153248		440	160	4	2460	4220	670	850	107
22348	3648		500	155	5	2680	4010	670	850	153
22348K	113648		500	155	5	2680	4010	670	850	148
22348/W33	3648Y		500	155	5	2680	4010	670	850	150
22348K/W33	113648Y		500	155	5	2680	4010	670	850	148
23952CA/W33	3053952	260	360	75	2.1	872	1820	1100	1500	23.8
23952CAK/W33	3153952		360	75	2.1	872	1820	1100	1500	23.7
23052	3003152		400	104	4	1380	2710	900	1200	49.7
23052K	3113152		400	104	4	1380	2710	900	1200	48.2
23052CA/W33	3053152		400	104	4	1380	2710	900	1200	49.2
23052CAK/W33	3153152		400	104	4	1380	2710	900	1200	48
24052/HCW33	4003152S		400	140	4	1700	3460	700	900	63.7
24052CA/W33	4053152		400	140	4	1700	3460	700	900	65.2
23152	3003752		440	144	4	2140	3850	800	1000	91.2
23152/W33	3003752Y		440	144	4	2140	3850	800	1000	90.7
23152K	3113752		440	144	4	2140	3850	800	1000	88.7
23152CA/W33	3053752		440	144	4	2140	3850	800	1000	90.7
23152CAK/W33	3153752		440	144	4	2140	3850	800	1000	90
24152CA/W33	4053752		440	180	4	2550	4080	600	900	110
22252CA/W33	53552		480	130	5	2250	3020	900	1200	110
23252CA/W33	3053252		480	174	5	2762	4040	600	900	140
22352	3652		540	165	6	3040	4620	630	800	188
22352/W33	3652Y		540	165	6	3040	4620	630	800	187
23956CA/W33	3053956	280	380	75	2.1	906	1840	1000	1400	25
23956CAK/W33	3153956		380	75	2.1	906	1840	1000	1400	24.5
23056	3003156		420	106	4	1440	2860	850	1100	53.3
23056K	3113156		420	106	4	1440	2860	850	1100	51.7
23056F1/C9	3003156W1U		420	106	4	1440	2860	600	800	51.5
23056CA/W33	3053156		420	106	4	1540	2920	850	1100	52.9
23056CAK/W33	3153156		420	106	4	1540	2920	850	1100	51.6
24056CA/W33	4053156		420	140	4	1870	3870	670	850	69.2
24056CAK/W33	4153156		420	140	4	1870	3870	670	850	66.4
23156	3003756		460	146	5	2200	3990	560	750	97.6
23156K	3113756		460	146	5	2200	3990	560	750	94.5
23156/W33	3003756Y		460	146	5	2200	3990	560	750	97.2
23156CA/W33	3053756		460	146	5	2200	3990	560	750	98.6
23156CA/W33	3153756		460	146	5	2200	3990	560	750	98
24156C/W33	4053756		460	180	5	2670	5100	400	500	105
24156CK/W33	4153756		460	180	5	2670	5100	400	500	104
22256	3556		500	130	5	2140	3360	800	1000	113
22256K	113556		500	130	5	2140	3360	800	1000	110
22256CA/W33	53556		500	130	5	2280	3610	800	1000	111
23256CA/W33	3053256		500	176	5	2790	4790	600	750	148
23256CAK/W33	3153256		500	176	5	2790	4790	600	750	144
22356	3656		580	175	6	3580	5450	600	750	227
22356/W33	3656Y		580	175	6	3580	5450	600	750	226
22356K	113656		580	175	6	3580	5450	600	750	223
23960CA/W33	3053960	300	420	90	3	1200	2500	950	1300	40.5
23960CAK/W33	3153960		420	90	3	1200	2500	950	1300	40
23060	3003160		460	118	4	1800	3350	800	1000	73.2
23060K	3113160		460	118	4	1800	3350	800	1000	71
23060/W33	3003160Y		460	118	4	1800	3350	800	1000	73.1
23060K/W33	3113160Y		460	118	4	1800	3350	800	1000	70.9
24060CA/W33	4053160		460	160	4	2380	4780	600	750	97.6
24060CA/C9W33	4053160U		460	160	4	2380	4780	600	750	97.6
23160	3003760		500	160	5	2720	4940	670	850	128
23160/W33	3003760Y		500	160	5	2720	4940	670	850	127
23160/C9W33	3003760UY		500	160	5	2720	4940	670	850	127
23160K	3113760		500	160	5	2720	4940	670	850	124
23160K/W33	3113760Y		500	160	5	2720	4940	670	850	123
23160CA/W33	3053760		500	160	5	2810	5140	670	850	128
23160CAK/W33	3153760		500	160	5	2810	5140	670	850	126
24160C/W33	4053760		500	200	5	3280	6300	360	450	159
24160CK/W33	4153760		500	200	5	3280	6300	360	450	158
22260CA	53560K		540	140	5	2650	4250	750	950	144
23260	3003260		540	192	5	3340	5890	530	670	191
230/319.5	3964	319.5	480	121	4	1840	3640	800	1000	79.5
23964CA/W33	3053964	320	440	90	4	1240	2700	900	1200	42.2
23964CAK/W33	3153964		440	90	4	1240	2700	900	1200	42
23064	3003164		480	121	4	1850	3640	800	1000	79.1
23064K	3113164		480	121	4	1850	3640	800	1000	76.7
23064CA/W33	3053164		480	121	4	1960	3750	800	1000	78.5
23064CAK/W33	3153164		480	121	4	1960	3750	800	1000	78
24064CA	4053164		480	160	4	2520	5360	630	800	104
24064CA/W33	4053164Y		480	160	4	2520	5360	630	800	105
24064K	4113164		480	160	4	2520	5360	630	800	101
24064CA/W33YA2	4053164HK		480	160	4	2520	5360	630	800	103
24064CAK30	4453164HK		480	160	4	2520	5360	630	800	104
23164	3003764		540	176	5	3100	5600	560	700	165
23164K	3113764		540	176	5	3100	5600	560	700	160
23164CA/W33	3053764		540	176	5	3130	5730	560	700	167
23164CAK/W33	3153764		540	176	5	3130	5730	560	700	165
24164CA/W33	4053764HK		540	218	5	3380	6250	340	430	202
22264CA/W33	53564		580	150	5	3060	4160	700	1000	175
23264	3003264		580	208	5	3510	4050	500	630	242
23264/W33	3003264Y		580	208	5	3510	4050	500	630	241
23264/C9W33	3003264UY		580	208	5	3510	4050	500	630	241
23264CAK/W33	3153264		580	208	5	3510	4050	500	630	234
23968CA/W33	3053968	340	460	90	4	1270	2800	900	1200	44.6
23968CAK/W33	3153968		460	90	4	1270	2800	900	1200	44.4
23068	3003168		520	133	5	2180	4360	700	900	105
23068/W33	3003168Y		520	133	5	2180	4360	700	900	105
23068K	3113168		520	133	5	2180	4360	700	900	102
23068CA/W33	3053168Y		520	133	5	2320	4640	700	900	106
23068CAK/W33	3153168Y		520	133	5	2320	4640	700	900	105
24068CA/W33	4053168		520	180	5	2930	5270	600	800	140
23168CA/W33	3053768		580	190	5	3680	6700	600	750	209
24168CA/W33	4053768		580	243	5	4500	7350	400	600	280
23268CA/W33	3053268		620	224	6	4740	8640	430	530	299
22368	3668		710	212	6	4960	7720	400	500	441
22368/W33	3668Y		710	212	6	4960	7720	400	500	440
23972CA/W33	3053972	360	480	90	4	1740	2900	850	1100	46.9
23972CAK/W33	3153972		480	90	4	1740	2900	850	1100	46.7
23072	3003172		540	134	5	2320	4630	670	850	110
23072/W33	3003172Y		540	134	5	2320	4630	670	850	110
23072C/W33	3053172		540	134	5	2320	4630	670	850	110
23072K	3113172		540	134	5	2320	4630	670	850	107
23072CAK/W33	3153172		540	134	5	2320	4630	670	850	108
24072CA/W33	4053172		540	180	5	3000	6280	500	630	146
24072CAK/W33	4153172		540	180	5	3000	6280	500	630	145
23172CA/W33	3053772		600	192	5	3770	6980	560	700	216
23172CAK/W33	3153772		600	192	5	3770	6980	560	700	214
24172CA/W33	4053772		600	243	5	4760	7900	450	600	280
22272CA/W33	53572		650	170	6	3650	5270	450	600	255
23272CA/W33	3053272		650	232	6	4590	7050	450	600	335
23976CAQ4/W33	3053976Q	380	520	106	4	1740	3790	800	1000	67.7
23076Q4	3003176Q		560	135	5	2500	5170	630	800	114
23076Q4/W33	3003176QY		560	135	5	2500	5170	630	800	113
23076CA/W33	3053176QY		560	135	5	2500	5170	630	800	114
23076KQ4	3113176Q		560	135	5	2500	5170	630	800	110
23076K/W33	3113176QY		560	135	5	2500	5170	630	800	110
24076CA/W33	4053176		560	180	5	3060	5780	520	700	150
23176/W33	3003776Y		620	194	5	3970	7670	400	500	230
23176/Q4/C9W33	3003776QU1Y		620	194	5	3970	7670	400	500	229
23176CAK/W33	3153776		620	194	5	3970	7670	400	500	229
24176CA/W33	4053776		620	243	5	4850	8330	450	600	300
23276CA/W33	3053776		680	240	6	4970	7780	450	600	375
23980CA/W33	3053980	400	540	106	4	1700	3310	670	900	71
23080CA/W33	3053180		600	148	5	2900	5930	600	750	153
23080CAQ4/W33	3053180Q		600	148	5	2900	5930	600	750	152
23080CAKQ4/W33	3153180Q		600	148	5	2900	5930	600	750	148
24080CA/W33	4053180		600	200	5	3650	6800	52	700	205
23180Q4	3003780Q		650	200	6	4230	8270	380	480	261
23180Q4/W33	3003780Q		650	200	6	4230	8270	380	480	263
23180KQ4	3113780Q		650	200	6	4230	8270	380	480	253
23180Q4/W33	3003780QY		650	200	6	4230	8270	380	480	260
23180K/W33	3113780Y		650	200	6	4230	8270	380	480	261
24180CA/W33	3053780		650	250	6	5270	9010	450	600	340
23280CA/W33	3053280		720	256	6	5750	10400	340	430	457
22380CA/W33	53682		820	243	7.5	6380	8840	450	600	650
23984CA/W33	3053984	420	560	106	4	1730	3530	600	800	74.5
23084CA/W33	3053184		620	150	5	2930	6060	450	560	157
23084KQ4	3113184Q		620	150	5	2930	6060	450	560	153
23084CAK/W33	3153184		620	150	5	2930	6060	450	560	155
23084CAQ4/W33	3053184Q		620	150	5	2930	6060	450	560	157
24084CA/W33	4053184		620	200	5	3740	7550	520	700	210
23184CAQ4/W33	3053784Q		700	224	6	5050	9570	360	450	351
23184CAKQ4/W33	3153784Q		700	224	6	5050	9570	360	450	350
24184CA/W33	4053784		700	280	6	6250	10700	370	500	445
23284CA/W33	3053284		760	272	7.5	6350	11700	320	400	541
23284CAK/W33	3153284		760	272	7.5	6350	11700	320	400	538
23284CA/W33YA3	3053284K		760	272	7.5	6350	11700	320	400	539
23988CA/W33	3053988	440	600	118	4	2080	4160	600	800	100
23088CA/W33	3053188		650	157	6	3100	5570	600	800	180
24088CA/W33	4053188		650	212	6	4080	7780	450	600	245
23188CA/W33	3053788		720	226	6	5180	10000	340	430	362
23188CAK/W33	3153788		720	226	6	5180	10000	340	430	360
24188CA/W33	4053788		720	280	6	6380	11200	370	500	460
23288CA/W33	3053288		790	280	6	6630	10600	300	400	590
24892CA/W33	4053892	460	580	118	3	1520	4160	600	800	75.5
23992CA/W33	3053992		620	118	4	2120	4250	600	800	105
23092CAQ4/W33	3053192Q		680	163	6	3500	7090	400	500	204
24092CA/W33	4053192		680	218	6	4420	8500	450	600	275
23192Q4	3003792		760	240	7.5	5710	11000	320	400	433
23192F1	3003792W1		760	240	7.5	5710	11000	320	400	434
23192CA/W33	3053792		760	240	7.5	5710	11000	320	400	435
23192CAK/W33	3153792		760	240	7.5	5710	11000	320	400	434
24192CA/W33	4053792		760	300	7.5	7050	12400	370	500	560
23292CA/W33	3053292		830	296	7.5	7220	11650	300	400	695
23996CA/W33	3053996	480	650	128	5	2460	4850	600	800	125
23096CA/W33	3053196		700	165	6	3310	5780	520	700	215
24096CA/W33	4053196		700	218	6	4500	8840	450	600	285
23196CA/W33	3053796		790	248	7.5	5900	10200	450	600	485
24196CA/W33	4053796		790	308	7.5	7650	13260	370	500	605
23296CA/W33	3053296		870	310	7.5	7900	12750	300	400	800
239/500CA/W33	30539/500	500	670	128	5	2460	5100	520	700	130
230/500CA/W33	30531/500		720	167	6	3530	6630	520	700	225
240/500CA/W33	40531/500		720	218	6	4670	9350	370	500	295
231/500CA/W33	30537/500		830	264	7.5	6500	11000	370	500	580
241/500CA/W33	50437/500		830	325	7.5	8330	14450	300	400	700
232/500CA/W33	30532/500		920	336	735	9010	14700	300	400	985
248/530CA/W33	40538/530	530	650	118	3	1560	4500	520	700	86
239/530CA/W33	30539/530		710	136	5	2720	5700	520	700	155
230/530CA/W33	30531/530		780	185	6	4330	7900	450	600	310
230/530Q4	30031/530Q		780	185	6	4380	9370	340	430	303
230/530CAQ4/W33	30531/530Q		780	185	6	4380	9370	340	430	302
240/530CA/W33	40531/530		780	250	6	5700	11220	370	500	410
231/530CA/W33	30537/530		870	272	7.5	6930	11900	370	500	645
241/530CA/W33	40537/530		870	335	7.5	9010	16150	300	400	830
232/530CA/W33	30532/530		980	355	9.5	9430	17340	220	300	1200
239/560CA/W33	30539/560	560	750	140	5	2930	6120	450	600	175
230/560CA/W33	30531/560		820	195	6	4980	10600	160	200	360
230/560Q4	30031/560Q	560	820	195	6	4980	10600	160	200	354
230/560CA/W33	30531/560Q		820	195	6	4980	10600	160	200	357
240/560CA/W33	40537/560		820	258	6	6250	12410	370	500	465
231/560CA/W33	30537/560		920	280	7.5	7780	13600	370	500	740
241/560CA/W33	40537/560		920	355	7.5	9780	18360	300	400	985
232/560CA/W33	30532/560		1030	365	9.5	10200	18700	220	300	1350
239/600CA/W33	30539/600	600	800	150	5	3320	7060	450	600	220
230/600Q4	30031/600Q		870	200	6	5260	11400	300	380	401
230/600CA/W33	30531/600		870	200	6	5260	11400	300	380	405
240/600CA/W33	40531/600		870	272	7.5	6930	14450	300	400	520
231/600CA/W33	30537/600		980	300	7.5	8670	15300	300	400	895
241/600CA/W33	40537/600		980	375	7.5	9780	20060	220	300	1200
232/600CA/W33	30532/600		1090	388	9.5	11130	21670	220	300	1600
238/630CA/W33	30538/630	630	780	112	4	1860	5180	450	600	120
23960CA/W33	30539/600		850	165	6	3950	8330	370	500	280
230/630CA/W33	30531/630		920	212	7.5	5900	12800	260	340	485
230/630Q4	30031/630Q		920	212	7.5	5900	12800	260	340	475
240/630CA/W33	40531/630		920	290	7.5	7480	15300	300	400	645
231/630CA/W33	30537/630		1030	315	7.5	8930	17680	300	400	1050
241/630CA/W33	40537/630		1030	400	7.5	10800	22950	220	300	1400
238/670CA/W33	30538/670	670	820	112	4	1910	5440	370	500	130
248/670CA/W33	40538/670		820	150	4	2640	8075	370	500	172
239/670CA/W33	30539/670		900	170	6	4250	9180	370	500	315
230/670CA/W33	30531/670		980	230	7.5	6500	12410	300	400	600
240/670CA/W33	40531/670		980	308	7.5	8500	17340	300	400	790
231/670CA/W33	30537/670		1090	336	7.5	9260	19040	300	400	1250
241/670CA/W33	40537/670		1090	412	7.5	11730	24650	220	300	1600
232/670CA/W33	30532/670		1220	438	12	13100	26000	150	200	2270
238/710CA/W33	30538/710	710	870	118	4	2190	6370	370	500	153
239/710 CA/W33	30539/710		950	180	6	4760	10200	300	400	365
249/710 CA/W33	40539/710		950	243	6	5780	13260	300	400	495
230/710 CA/W33	30531/710		1030	236	7.5	7050	13850	300	400	670
240/710 CA/W33	40531/710		1030	315	7.5	9010	19380	220	300	895
231/710 CA/W33	30537/710		1150	345	9.5	10370	22100	220	300	1450
241/710 CA/W33	40537/710		1150	438	9.5	12920	27620	220	300	1900
232/710 CA/W33	30532/710		1280	450	12	14960	29320	150	200	2610
238/750CA/W33	30538/750	750	920	128	5	2490	7220	300	400	180
239/750 CA/W33	30539/750		1000	185	6	5100	11220	300	400	420
249/750 CA/W33	40539/750		1000	250	6	6500	15300	220	300	560
230/750 CA/W33	30531/750		1090	250	7.5	8200	15810	300	400	795
240/750 CA/W33	40531/750		1090	335	7.5	10030	21250	220	300	1065
231/750 CA/W33	30537/750		1220	365	9.5	11730	24650	220	300	1700
241/750 CA/W33	40537/750		1220	475	9.5	14700	31880	150	200	2100
232/750 CA/W33	30532/750		1360	475	15	15900	31020	150	200	3050

返回上一步: 打印此页
